HATA
HATA tablet presses are high-performance, high-quality machines for the pharmaceutical industry, built on decades of experience in powder compaction technology. The range covers interchangeable-turret double rotary presses, tri-layer and tablet-in-tablet presses, and production and pilot-scale single rotary machines.

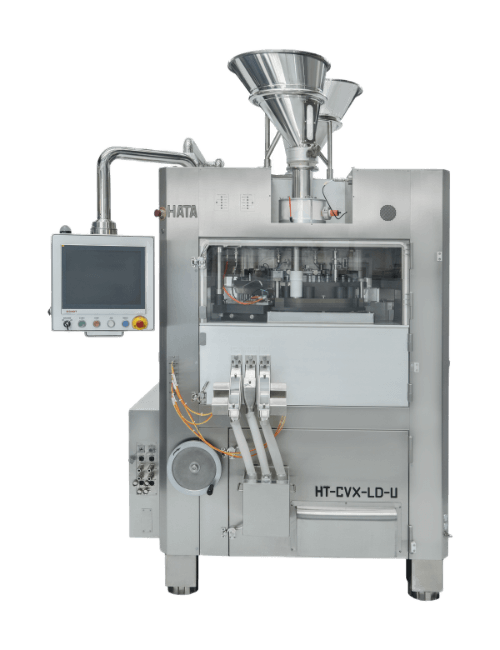

HATA CVX LD U
Interchangeable Turret (Double Rotary)
Key Features:
- Quick Turret Changeover
- Drive System with Air Cooling
- Two Stage Sealed Force Feeder
Output:
| No. of Stations & Tooling | 45 D | 55 B | 65 BB | |
|---|---|---|---|---|
| Output/hr (Single Layer) | 432,000 | 528,000 | 624,000 | |
| Output/hr (Bi-Layer) | 108,000 | 132,000 | 156,000 | |
| Pre Compression Force | 8 Ton/80 kN | |||
| Main Compression Force | 8 Ton/80 kN | |||

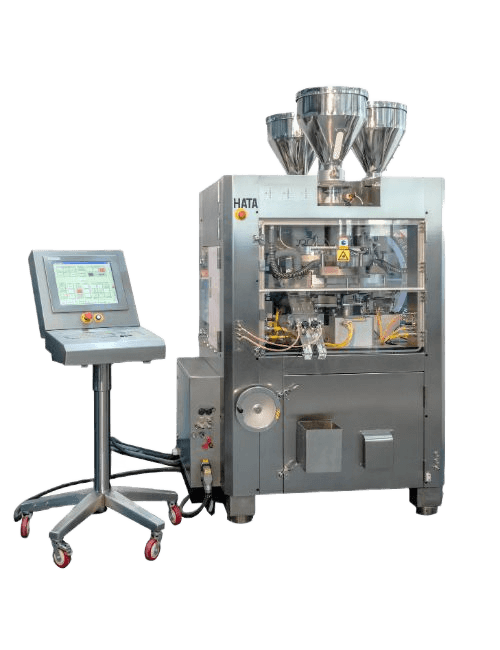

HATA CVX LS U
Tri-Layer/Tablet-in-Tablet
Key Features:
- Patented Core Feeder Process
- Core Tablets are fed from a Vibratory Bowl
- Cam lifts Pin and Tablet through Centre Core Holder
Output:
| No. of Stations & Tooling | 45 D | 55 BB | 71 BB | |
|---|---|---|---|---|
| Output/hr (Tri-Layer) | 108,000 | 132,000 | 170,400 | |
| Pre Compression Force | 8 Ton/80 kN | |||
| Main Compression Force | 8 Ton/80 kN | |||

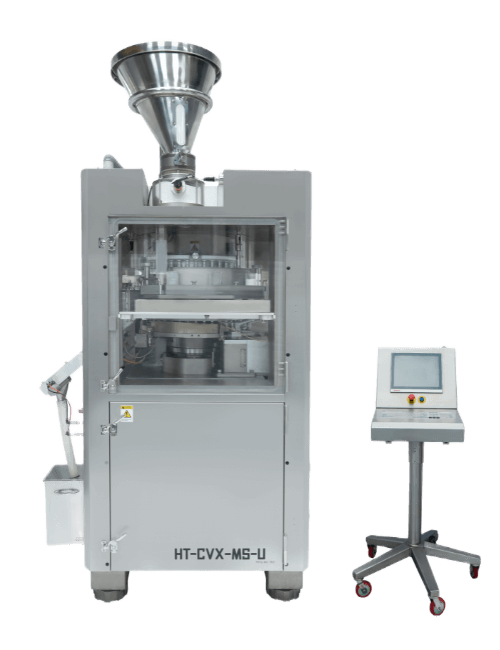

HATA CVX MS U
Production Scale (Single Rotary)
Key Features:
- Two Stage Sealed Force Feeder
- Simple Operation
- Easy Cleaning and Maintenance
Output:
| No. of Stations & Tooling | 32 D | 38 B | 45 BB | |
|---|---|---|---|---|
| Output/hr | 192,000 | 228,000 | 270,000 | |
| Pre Compression Force | 8 Ton/80 kN | |||
| Main Compression Force | 8 Ton/80 kN | |||

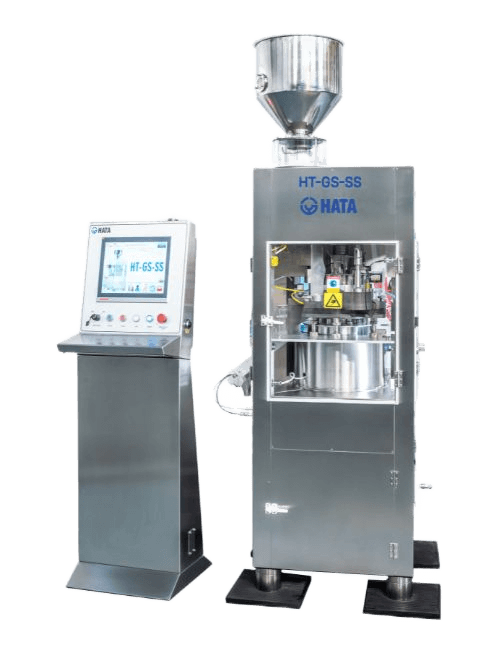

HATA GS-SS
Pilot Scale (Single Rotary)
Key Features:
- Two Stage Sealed Force Feeder
- Simple Operation
- Easy Cleaning and Maintenance
Output:
| No. of Stations & Tooling | 15 D | 18 B | 22 BB | |
|---|---|---|---|---|
| Output/hr | 63,000 | 75,000 | 92,400 | |
| Pre Compression Force | 5 Ton/49 kN | |||
| Main Compression Force | 5 Ton/49 kN | |||
