R&D equipment

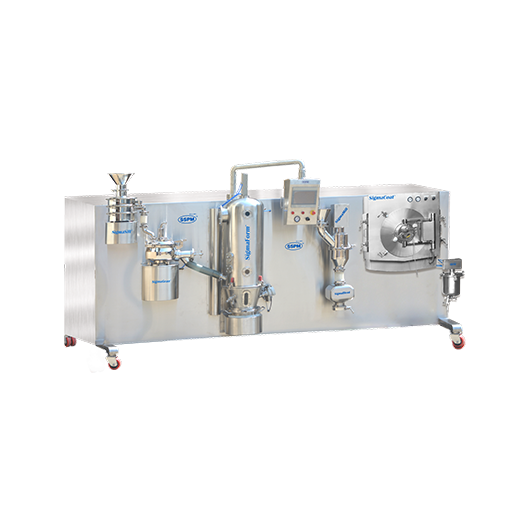

SigmaWall

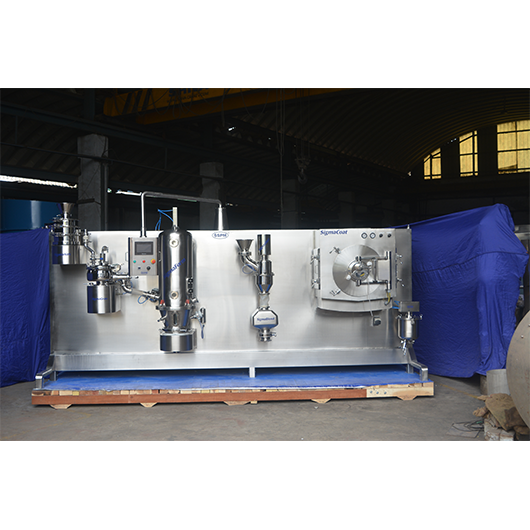

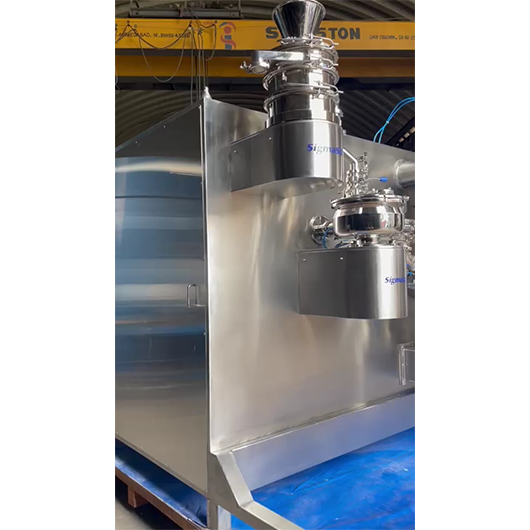

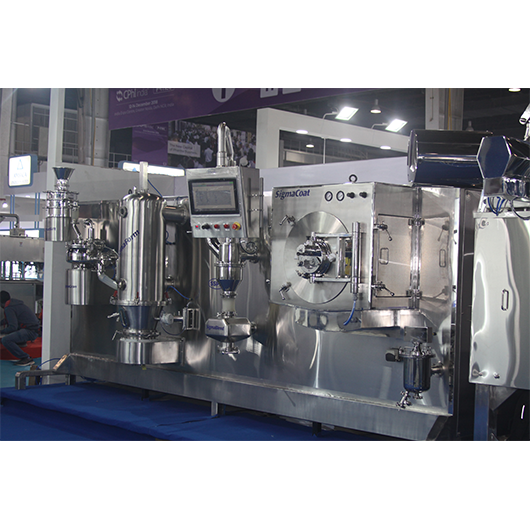

“Lab on Wall” R&D system
A compact R&D system that combines several processes in one unit: sifting, granulation, drying, milling, blending and, if required, tablet coating. Interchangeable bowls and bins let you choose the batch size, and a proven process scales up easily to pilot and production equipment. Isolator compatibility (OEB 3 and OEB 4) allows work with hormonal and oncology products while protecting both operator and product.
Send an enquiryKey features
- cGMP design, plug & play
- Built-in air handling unit
- Isolator compatible (OEB 3 and OEB 4)
- Low maintenance, tool-free design
- Available with or without a tablet coating system
- Safety interlocks and earthing points
- Common PLC and colour touch-screen HMI
- 21 CFR Part 11: data integrity, user management, record retention
- Batch report printing
- Remote service via IoT
System configuration
| Equipment | Size |
|---|---|
| Sifter | 12″ |
| Rapid mixer granulator | 2.5 / 5 / 7.5 / 10 L |
| Fluid bed dryer / processor | 2 / 5 kg |
| Lab co-mill | 20–40 kg |
| Lab blender | 5 / 10 / 15 / 20 / 25 L |
| Tablet coater | 6″ / 12″ / 18″ |
