Material handling
SigmaTrans
Vacuum pneumatic conveying system
Vacuum transfer system for fast, safe movement of powders, granules and bulk solids in solid dosage manufacturing. It delivers high throughput while maintaining product integrity, and protects operators from APIs, excipients and process dust. Used to load blenders, sifters, granulators, mills, tablet presses and capsule fillers.
Send an enquiryKey benefits
- Smaller and lighter
- Energy efficient
- Dust-free powder transfer
- Shorter process time and higher product yield
- Effective cleaning and contamination control
- Reduced manual handling
- Operator protection from APIs and excipients
- Higher transfer rate
Technical specifications
| Capacity | 100–5000 kg/h |
|---|---|
| Vacuum source | Specially designed blower |
| Filter cleaning | Air-blasted pulse jet |
| Discharge | Full opening |
| Level sensing | Level sensor |
| Materials | Contact parts SS 316/316L, non-contact SS 304 |
| Control | Sequential timer or PLC |

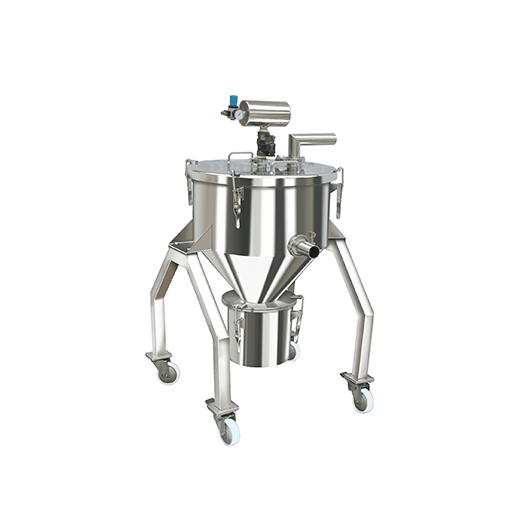

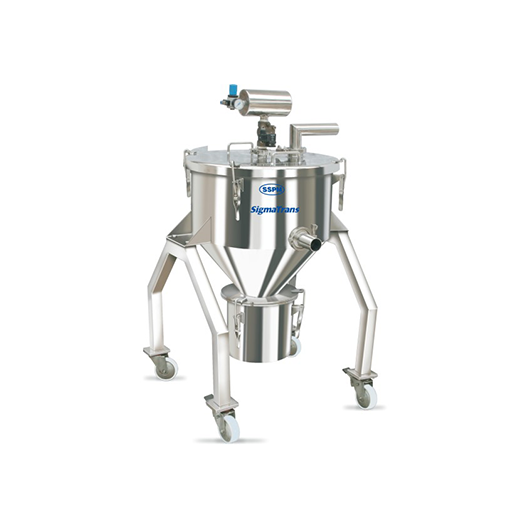

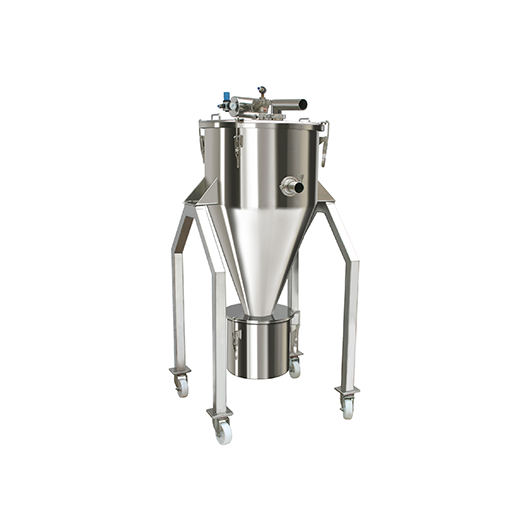

Gallery
