Tablet coating
SigmaCoat

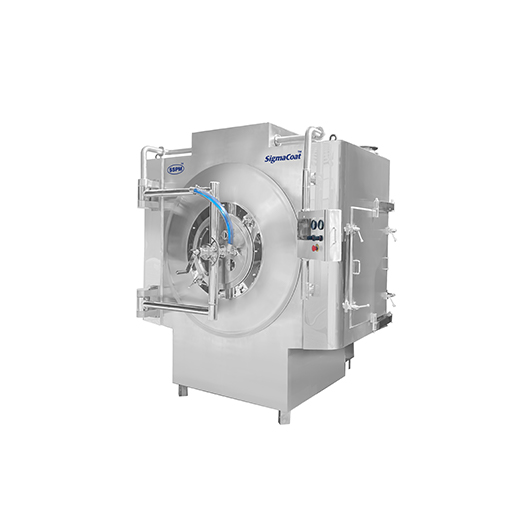

Tablet coating system
Equipment for film, enteric and sugar coating of tablets — from 12″ lab coaters to 72″ production units. More than 550 units are installed worldwide. Anti-bearding spray nozzles give full coverage without clogging, and an integrated pump delivers the coating solution. The automation system is easy to operate; 21 CFR Part 11 compliance is available on request.
Send an enquiryKey features
- Perforated pan with auto-discharge
- Film, enteric and sugar coating
- Flameproof construction
- Air handling unit with Pre / Micro / HEPA filters
- Wet or dry scrubber
- Anti-bearding nozzles with 3-level alignment
- Multi-head peristaltic pump

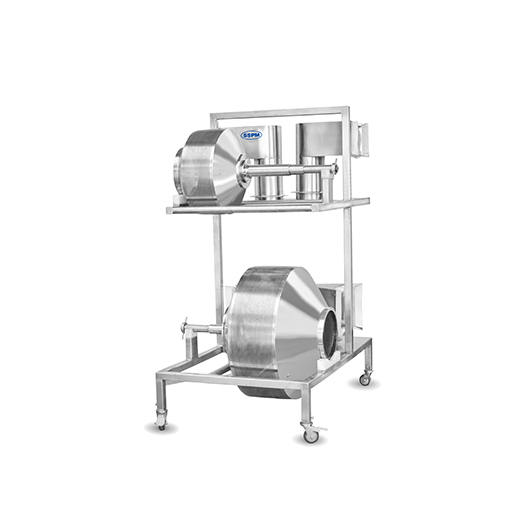

- Interchangeable pans
- IR sensor for product temperature in the pan
- Wash-in-place system
- Containment solution for R&D coaters
Technical specifications
| Model | Pan diameter, mm | Pan mouth, mm | Brim volume, L | Optimum batch, kg | Pan motor, HP | Process air in / out, CFM |
|---|---|---|---|---|---|---|
| SigmaCoat 12″ | 305 | 175 | 1.4 | 1 | 0.5 | 825 / 900 |
| SigmaCoat 18″ | 455 | 175 | 7 | 5 | 0.5 | 825 / 900 |
| SigmaCoat 24″ | 610 | 250 | 20 | 15 | 1.5 | 1200 / 1500 |
| SigmaCoat 30″ | 760 | 360 | 40 | 30 | 5 | 1500 / 2000 |
| SigmaCoat 36″ | 910 | 360 | 70 | 50 | 5 | 1500 / 2000 |
| SigmaCoat 48″ | 1220 | 450 | 200 | 150 | 7.5 | 2500 / 3500 |
| SigmaCoat 52″ | 1320 | 475 | 270 | 200 | 7.5 | 3300 / 4500 |
| SigmaCoat 60″ | 1524 | 500 | 400 | 300 | 7.5 | 4500 / 6000 |
| SigmaCoat 66″ | 1675 | 550 | 470 | 350 | 7.5 | 6000 / 7500 |
| SigmaCoat 72″ | 1830 | 600 | 670 | 500 | 15 | 7000 / 8000 |
Optimum batch at a bulk density of 0.5 g/cm³.
