Capping and crimping heads

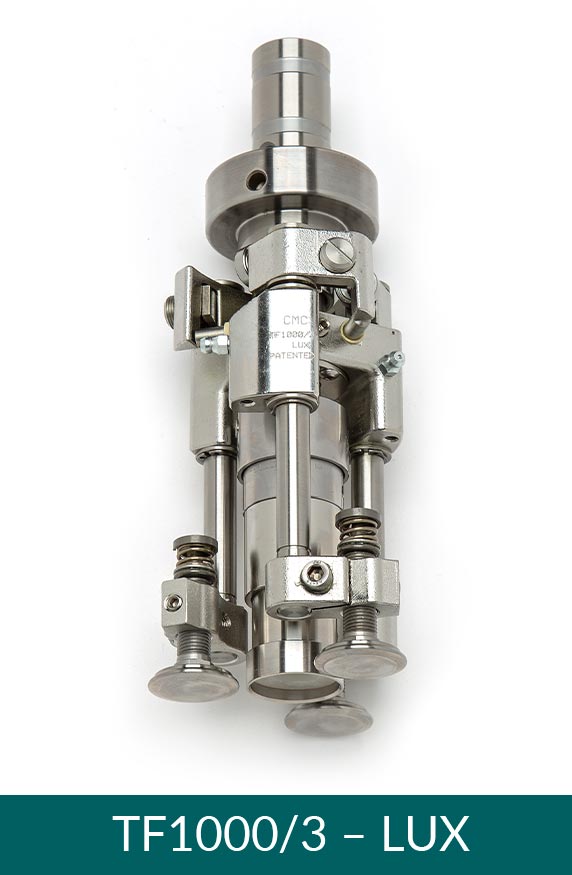

Capping head TF1000/3-LUX
For STELVIN-LUX caps, patented design
TF-LUX capping heads are widely used by manufacturers of machines and components for the wine sector. They are used on intermittent and multi-head rotary machines: the head first screws the inner plastic cap and then edges the outer aluminium cap (STELVIN-LUX type) on glass or plastic containers. The head consists of an adjustable internal magnetic clutch and 3 external edging rollers. AISI 304 stainless steel. Patented head.
Send an enquiryModels and technical data
| Model | Torque range | Max. size, mm | Total height, mm | Threaded connection | Shaft dia., mm | Shaft length, mm | Cap dia., mm |
|---|---|---|---|---|---|---|---|
| TF 1000/3-LUX | 0.2–1.0 Nm | D. 105 | 220–250 | M42x1.5 – M52x1.5 | d.30 – d.37 h7 | 38–70 | d. 28–32 |
Need help choosing a capping head?
Tell us about your container, cap type and required output — we will select the head, machine and options and send you a quotation.
