Capping and crimping heads
Capping heads TF series
Roller capping heads, stainless steel

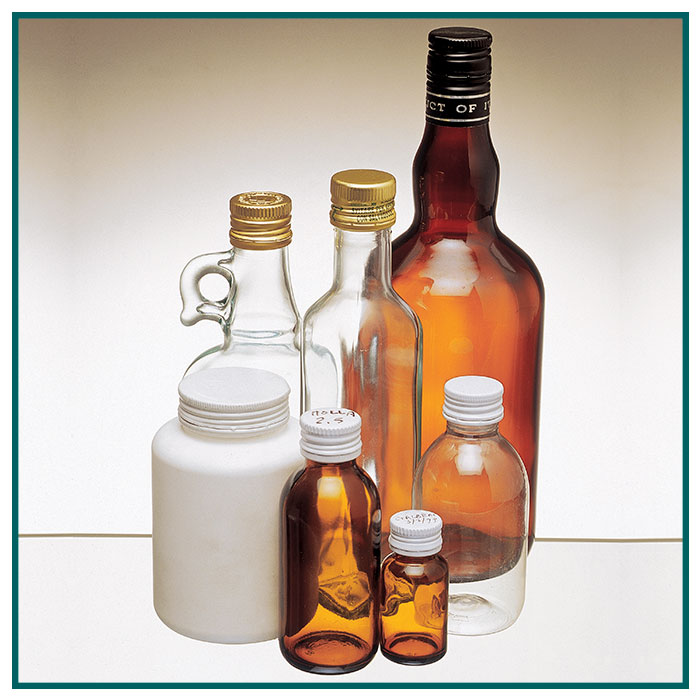

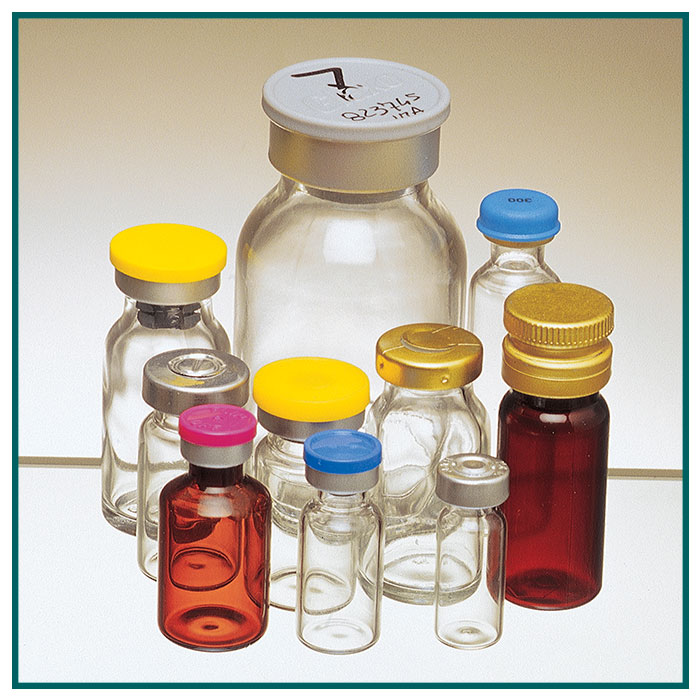

TF capping heads are widely used by manufacturers of machines and components in the chemical, pharmaceutical, cosmetic and wine-making sectors. They are used on intermittent machines or multi-head rotary machines and can be set up for edging and threading Pilferproof (PFP) caps, or edging only for UT and Flip-Off caps, on glass and plastic containers. Available in 3- and 4-roller versions, stainless steel.
Send an enquiryModels and technical data
| Model | Max. size, mm | Total height, mm | Threaded connection | Shaft dia., mm | Shaft length, mm | Ring nut dia., mm |
|---|---|---|---|---|---|---|

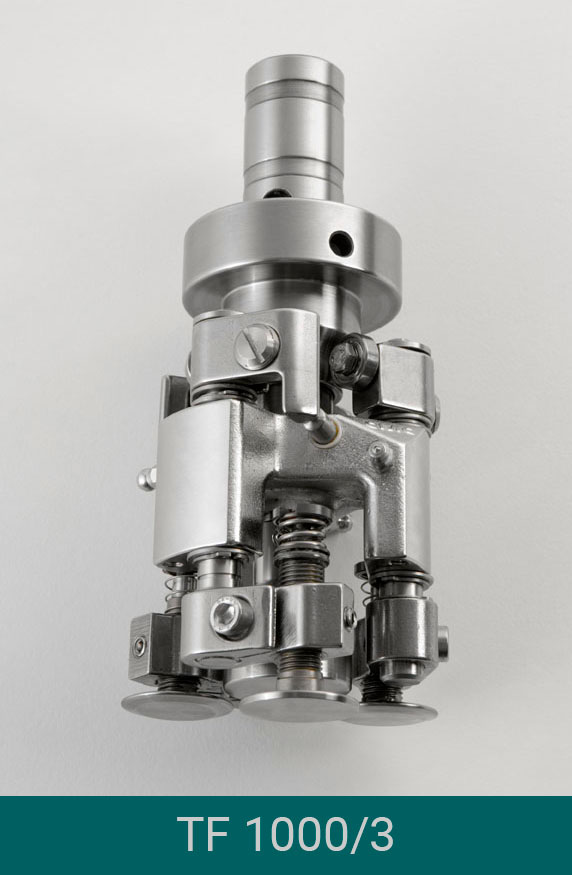

| TF 1000/3 | D. 105 | 180–210 | M42x1.5 – M52x1.5 | d.30 – d.37 h7 | 38–70 | d. 8–32 |

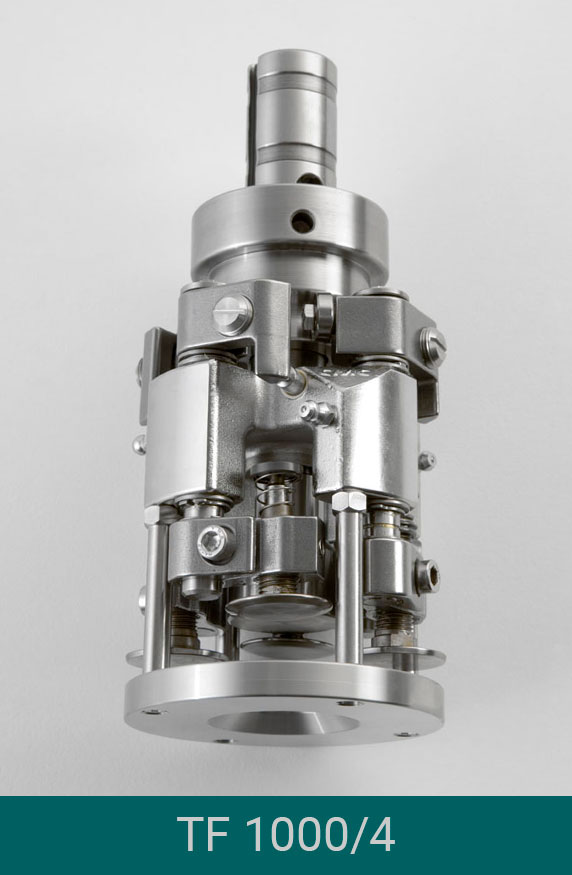

| TF 1000/4 | D. 120 | 180–210 | M42x1.5 – M52x1.5 | d.30 – d.37 h7 | 38–70 | d. 18–50 |
Gallery and applications
Need help choosing a capping head?
Tell us about your container, cap type and required output — we will select the head, machine and options and send you a quotation.
