Capping and crimping heads
Lever capper CM/M-500
Electric, lever-operated, 600–700 pcs/hour
Electric capping machine for closing glass and plastic containers with Pilferproof (PFP), UT and Flip-Off metal caps with or without drip-catcher. The operator raises the bottle-holding plate with a manual lever, places the bottle, presses the start button and pulls the lever to bring the bottle to the head, which screws and closes the cap in a few seconds. Can be fitted with three- or four-roller heads.
Send an enquiry- Bench structure in AISI 304 stainless steel
- 24 V controls
- output 600–700 pcs/hour
- motor 0.25/0.18 kW, single- or three-phase
- max. bottle size D 200 × H 350
- weight 40 kg
- CE standards
Models and technical data
| Model | Head | Max. size, mm | Total height, mm | Threaded connection | Cap dia., mm |
|---|---|---|---|---|---|
| CM/M 500 3R | TF1000/3 | 500×500 | 1160 | M42x1.5 – M52x1.5 | d. 8–32 |

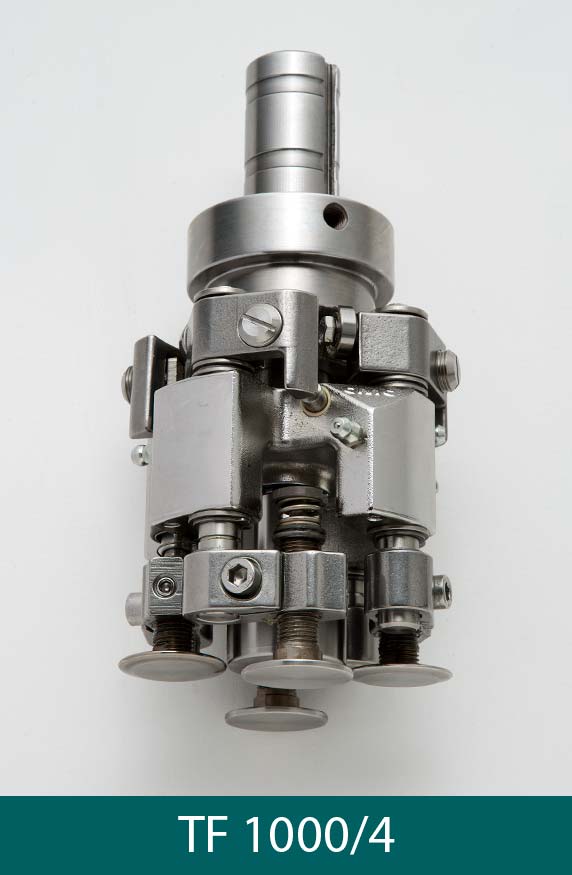

| CM/M 500 4R | TF1000/4 | 500×500 | 1160 | M42x1.5 – M52x1.5 | d. 18–50 |
Gallery and applications
Need help choosing a capping head?
Tell us about your container, cap type and required output — we will select the head, machine and options and send you a quotation.
