Pharmaceutical isolators
CLF-IS

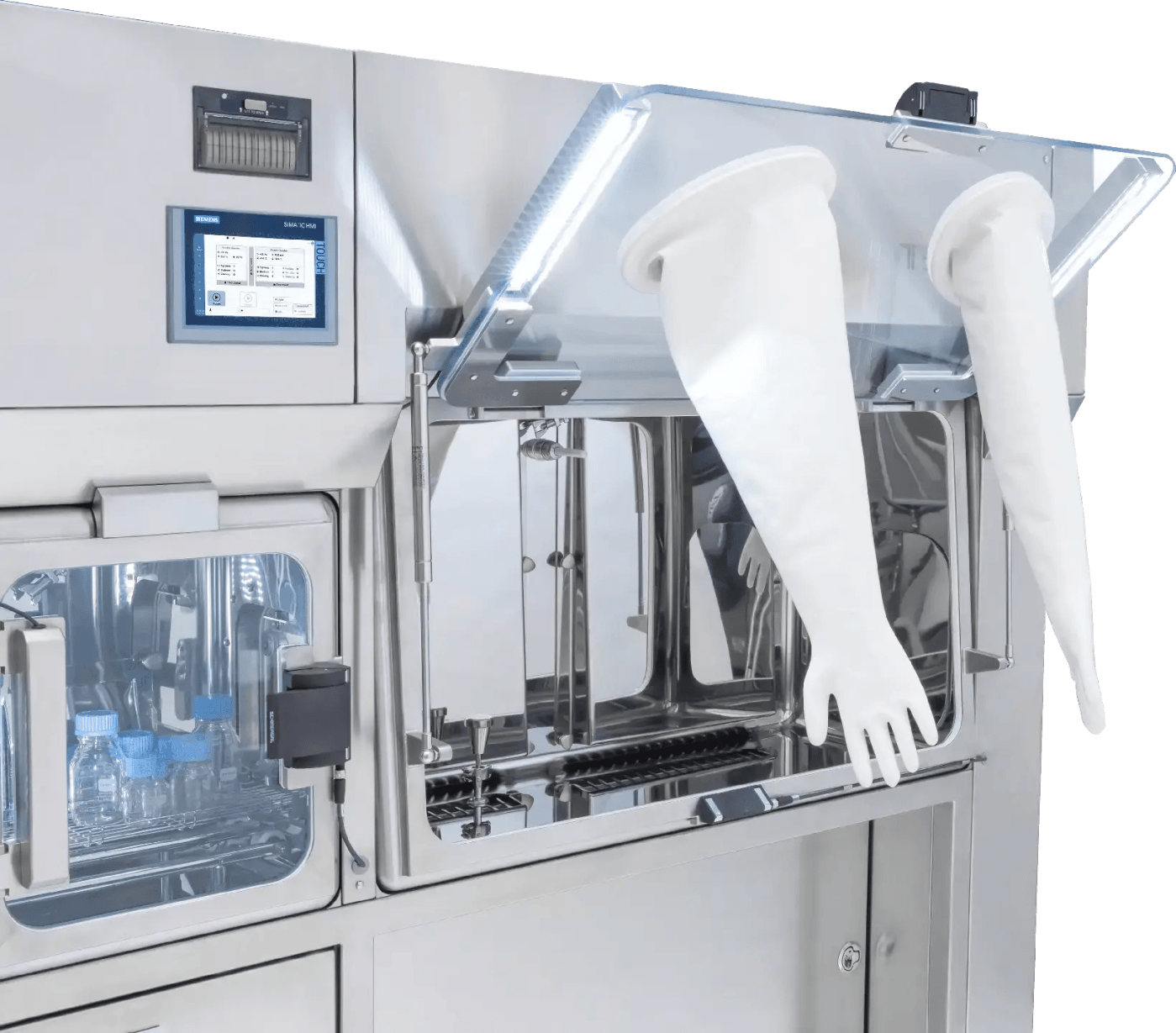

Compact laminar flow isolator
A modular cGMP Class A / ISO 5 isolation system designed for safe handling of hazardous compounds (chemotherapy, oncology) in hospital pharmacies. Main components: PLC control, modular concept, HEPA H14 filtration, unidirectional airflow, positive or negative pressure gradient, access panels with safety sensors, LED lighting. Options: integrated VPHP generator, VPHP TLV sensor, particle monitoring, automatic glove leak test, 21 CFR Part 11 paperless recorder, sliding front shield for radiopharmaceutical applications.
Send an enquiryKey features
- Unidirectional (laminar) airflow with recirculation in the work area
- Strict containment: inflatable seals, negative pressure gradient and H14 HEPA filters
- Automatic leak test of each chamber per ISO 10648-2 (pressure change method)
- Ergonomic design for comfortable and safe operator work
- Very low energy consumption thanks to low-voltage fans
Standards and compliance
| Grade 2 | ISO 10648-2 |
|---|---|
| OEL 5 | ≤ 50 ng/m³ |
| Class A | EU GMP |
| ISO 5 | ISO 14644-1 |
Gallery
Need an isolator or RABS for your process?
Tell us about your product, process and cleanroom class — we will propose a configuration and send you a quotation.
